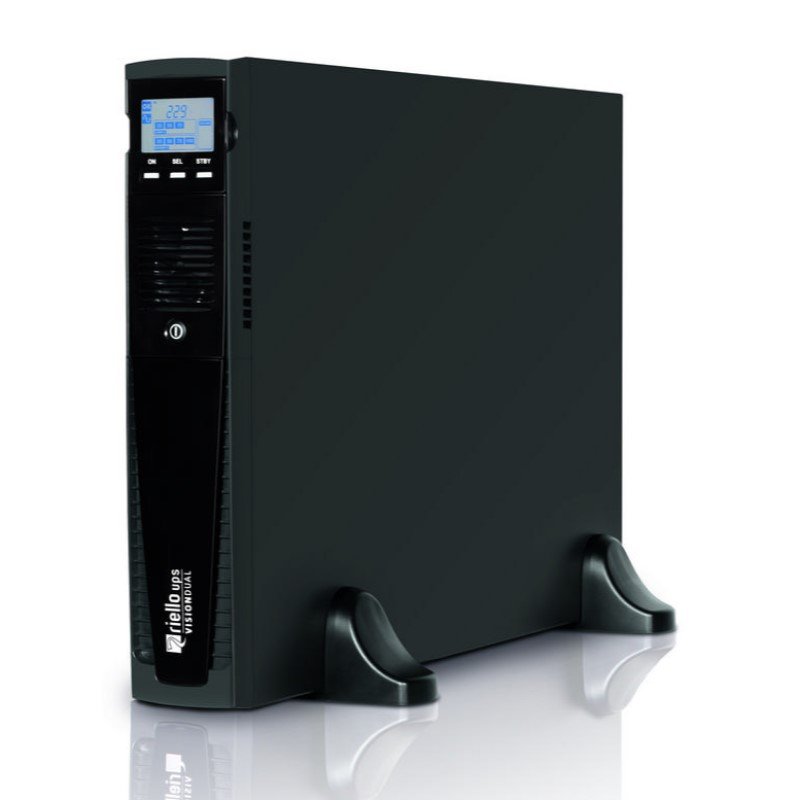

Riello Vision Dual 1500VA 230V Rackmount/Tower VSD-1500
4 Minute Run Time
Flexible installation (2U rackmount or freestanding tower)
Simple plug and play installation
Easy to maintain with hot-swappable batteries
Up to 98% operational efficiency cuts energy waste
Prioritise your critical loads with our advanced EnergyShare sockets
Extended runtime versions available (2200VA and 3000VA versions)
Rotating LCD display panel shows UPS status, load, and battery level
5-year warranty provides additional peace of mind
Read the full description£405.00 (£486.00 inc VAT)
SKU: VSD-1500
FREE Next Day UK delivery on orders over £300
Educational Discount - If you are a School, College or University please contact us here with your enquiry. You may be liable for an Extra Discount.
Quantity Discounts available - request for a quotation
Got a Question ? - Use our LIVE Chat window below and talk to one of our friendly staff who'll be happy to help. Or send us an email at sales@imagestore.co.uk.
Associated products
Latest products
Overview
Doubly versatile line-interactive UPS
Vision Dual (VSD) is a line-interactive UPS designed to protect conventional or rack servers, network backup systems, and IT network devices. Plug and play either as a freestanding tower or as a 2U rackmount UPS.
Superior Performance
VSD has an output power factor of 0.9 and delivers 98% operational efficiency, reducing your power consumption. EnergyShare socket allows load-shedding so you can prioritise backup to your most critical loads.
Extended Battery Autonomy
Batteries are easily hot-swappable from the front panel. Extended runtime versions fitted with more powerful chargers available for 2200 VA and 3000 VA versions, enabling several hours’ autonomy.
Specification
| Rated power | 1500 VA |
| Voltage | 220 / 230 / 240 V |
| Frequency | 50 Hz or 60 Hz ±5 |
| Frequency tolerance | 50 Hz ±5% / 60 Hz ±5% |
| Power factor | >0.98 |
| Current distorsion | ≤7% |
| OUTPUT and INVERTER OUTPUT | |
| Rated power | 1500 VA |
| Active power | 1350 W |
| Crest factor (Ipeak/Irms) | 2.5 : 1 |
| Wave form on battery | Sinusoidal |
| Frequency on battery operation | Selectable: 50 Hz or 60 Hz or self-learning |
| Voltage distortion with non-linear load | <8% |
| Voltage distortion with linear load | <3% |
| OVERLOAD TIMES | |
| Load = 150% | 1 sec. |
| Load = 125% | 10 sec. |
| BATTERIES | |
| Type | VRLA AGM maintenance-free lead based |
| Typical recharge time | 2-4 h |
| ENVIRONMENTAL | |
| Color | Black |
| Communication | USB / DB9 with RS232 and contacts / Slot for communication interface |
| Accessories provided | Power cable, serial cable, USB cable, safety manual, quick start guide, user manual on CD-ROM |
| Surge capability | 300 J |
| Protections | Overcurrent - short circuit - overvoltage - undervoltage - temperature - excessive low battery |
| Line-Interactive/Smart Active efficiency | 98.5% |
| Noise (at 1 m) | <40 [bBA] (ECO Mode) |
| Storing temperature | 0 °C - +40 °C |
| Relative humidity | 5-95% non-condensing |
| Standards | European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant |
| DATA | |
| Weight | 17.5 kg |
| Dimensions (h w d) | 425x87x450 / 2Ux19''x425 mm |
Warranty
5 years warranty
