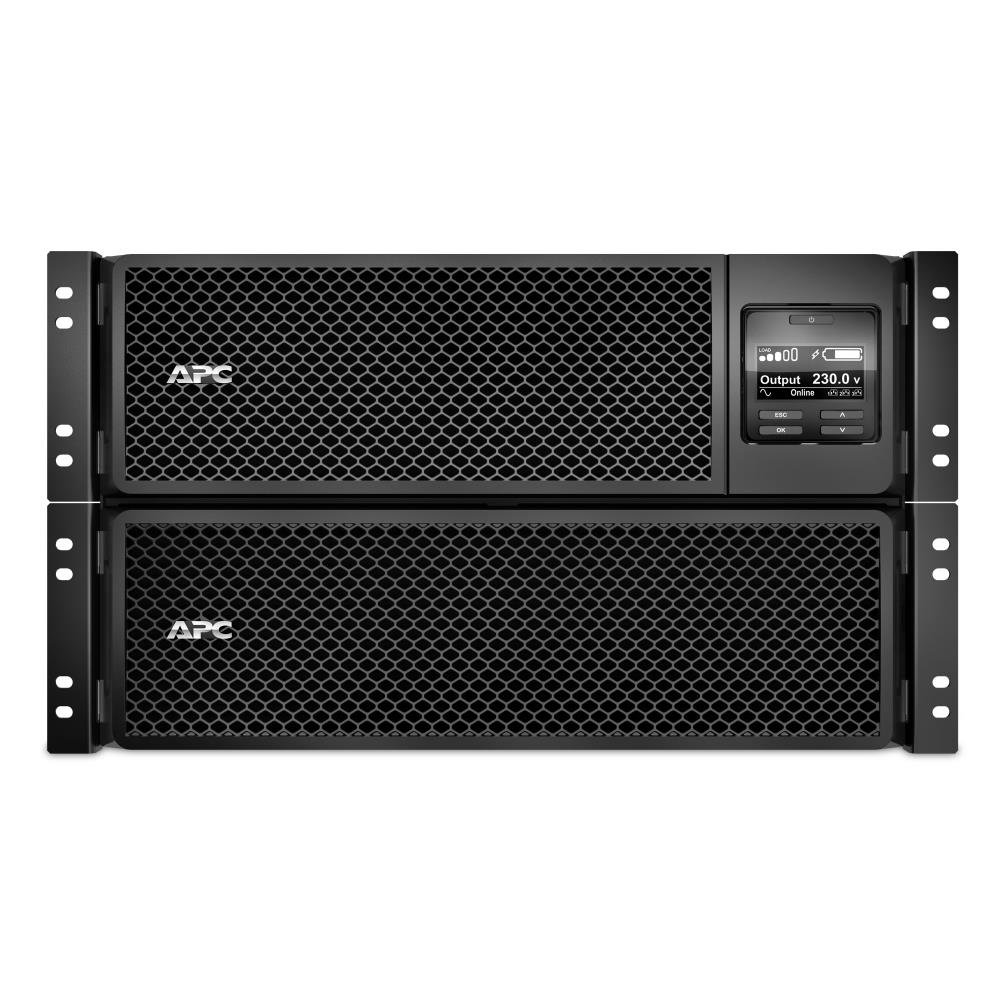

APC Smart-UPS 8000VA Rackmount 230v
Features:
• Connect the device to a network using a 10 or 100 BaseT connection.
• Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
• Protects connected loads from surges, spikes, lightning, and other power disturbances.
• Provides temporary battery power when the utility power is out.
• Easy recovery from overloads; no need to replace a fuse.
Read the full description£5,323.92 (£6,388.70 inc VAT)
SKU: SRT8KRMXLI
FREE Next Day UK delivery on orders over £300
Educational Discount - If you are a School, College or University please contact us here with your enquiry. You may be liable for an Extra Discount.
Quantity Discounts available - request for a quotation
Got a Question ? - Use our LIVE Chat window below and talk to one of our friendly staff who'll be happy to help. Or send us an email at sales@imagestore.co.uk.
Associated products
Latest products
Overview
APC Smart-UPS SRT 8000VA RM 230V SRT8KRMXLI
LCD graphics display has text and mimic diagrams that display modes of operation, system parameters and alarms. Connect the device to a network using a 10 or 100 BASE-T connection. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance. Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault. Scalable runtime allows additional run time to be quickly added as needed. Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.
Specification
| APC Smart-UPS SRT 8000VA RM - UPS - 8000 Watt - 8000 VA | |
|---|---|
| Device Type | UPS - rack-mountable |
| Rack Size | 6U |
| Weight | 111.82 kg |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ± 3% |
| Power Capacity | 8000 Watt / 8000 VA |
| Input Connectors | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Output connectors | 6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire 3-wire (HN + G) ¦ 3 x IEC connector |
| Battery | Lead Acid |
| Run Time (Up To) | 5.3 min at full load |
| Networking | Ethernet 10/100, USB |
| Colour | Black |
| Dimensions (WxDxH) | 43.2 cm x 71.5 cm x 26.3 cm |
| Manufacturer Warranty | 3-year warranty |
| General | |
|---|---|
| Colour | Black |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 6U |
| Battery | |
|---|---|
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 3 hours |
| Run Time (Up To) | 5.3 min at full load ¦ 14.8 min at half load |
| Technology | Lead Acid |
| Dimensions & Weight | |
|---|---|
| Depth | 71.5 cm |
| Height | 26.3 cm |
| Weight | 111.82 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
|---|---|
| Shipping Depth | 1 m |
| Shipping Height | 46.1 cm |
| Shipping Weight | 130 kg |
| Shipping Width | 60 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
|---|---|
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces | 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45 |
| Manufacturer Warranty | |
|---|---|
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Miscellaneous | |
|---|---|
| Compliant Standards | C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC |
| Features | Audible alarm, LCD display |
| Networking | |
|---|---|
| Remote Management Interface | Ethernet 10/100, USB |
| Power Device | |
|---|---|
| Efficiency | 98% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V ± 3% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 8000 Watt / 8000 VA |
| Power Output Connectors Details | 6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 1 x hardwire 3-wire (HN + G) ¦ 3 x IEC connector |
| Surge Energy Rating | 480 Joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
Warranty
3 years, excluding the batteries, which are warranted for 2 years.
