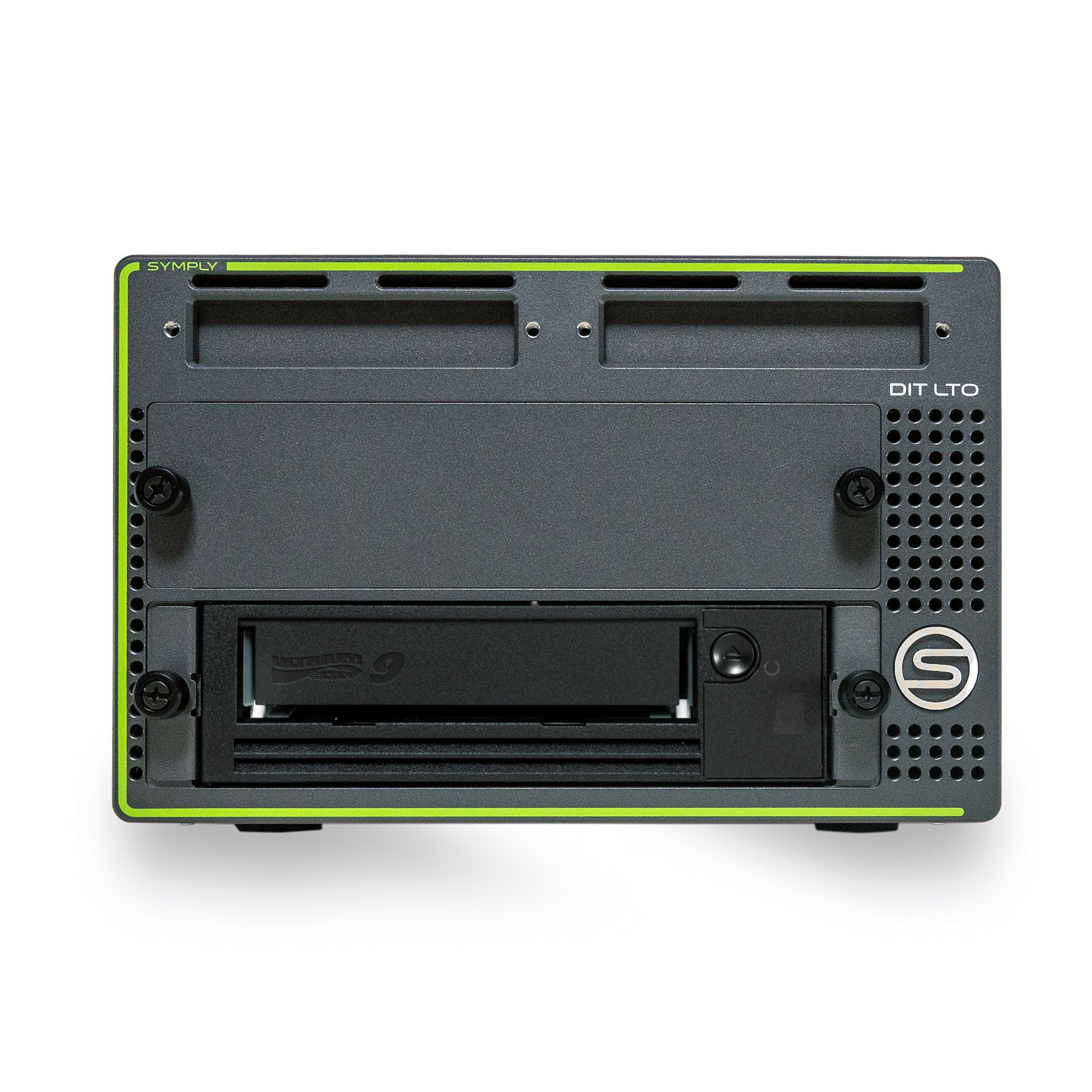

SymplyDIT XTH Thunderbolt Desktop 1xLTO-9 HH TB3 & SAS

Desktop Dual Drive with 2 x 2.5” SSD Bays

Includes 1 x LTO-9 Half-Height Drive up to 300MB/Sec per Drive.

Advanced Metal Alloy Enclosure with Premium Power Supply and Cooling for Unmatched Reliability.

Horizontally Mounted LTO, for Best Reliability.

Supports LTFS for Massive Interoperability

Supports AES 256-bit Encryption & WORM for Sensitive Data & Compliance.

SymplyLOCK, Beautifully Machined Aluminium Thunderbolt Cable Locking

Features Kensington T-Bar to Keep Your SymplyPRO Secure.

PROMO - Includes 5 x IBM LTO9 Tapes

Read the full description

£5,713.33 (£6,856.00 inc VAT)

SKU: SYDIT-DT3L9H2B-A0

In Stock




FREE Next Day UK delivery on orders over £300

Educational Discount - If you are a School, College or University please contact us here with your enquiry. You may be liable for an Extra Discount.

Quantity Discounts available - request for a quotation

Got a Question ? - Use our LIVE Chat window below and talk to one of our friendly staff who'll be happy to help. Or send us an email at sales@imagestore.co.uk.

Associated products

Latest products

Overview

SymplyPRO DIT XTH Thunderbolt Desktop Thunderbolt with Hot-Swap Dual Drive Bays, 2 x 2.5" SSD Docking Bays, Thunderbolt 3 & 12Gb SAS (SFF-8644) host interfaces in a sleek space grey rugged metal alloy enclosure.

Includes 1 x LTO-9 Half-Height tape drive (upgradable to two drives).
Dual Thunderbolt 3 ports support both device charging & daisy chaining.
2.5" SSD that are docked to the 2.5” drive bays, or SAS drives connected via the 12Gb SAS (SFF-8644)
Expansion Port are bridged to Thunderbolt by the SymplyPRO DIT.
LTO-9 boasts a native capacity of 18TB (45TB compressed) and native performance of 300MB/Sec (750MB/Sec compressed), supports 256-bit encryption along with WORM media.
Compatible with LTFS (Linear Tape File System) making backup and archive operations easier to an open source and interchangeable tape format.
Symply tape products feature massive interoperability and are compatible with industry leading software providers.
Premium cooling fans and power supply (Internal Auto-Switching, 110-240v).

Kit includes 1 x data cartridge, 1 x cleaning cartridge, 1 x 2m Active Thunderbolt 4 cable, 1 x SymplyLOCK, 1 x SymplyDIT 2.5 Inch Drive Tray, 1 x Local Power Cable and SymplyATOM macOS software.

3 Year Worldwide warranty with optional extension to 5 years.  Certified

Specification

What's in the box ?

Data Cartridge
Cleaning Cartridge
2m (6.5ft) Active Certified Thunderbolt 4 Cable
SymplyDIT 2.5 Inch Drive tray
SymplyLOCK
Worldwide power cords
Product documentation
SymplyATOM LTFS Software


Technical Specifications

Product Name Form Factor Drives LTO Gen Host Interface Expansion Interface Dims D x W x H cm/in Weight Kg/Lbs Power Supply
SymplyDIT Thunderbolt Desktop (Half-Height) 1 7, 8, 9 2 x TB3
1 x SFF-8644		 1 x SFF-8644 27.5 x 21.1 x 9.2 cm 11 x 8.5 x 3.5 in 3.84 KG 8.5 lb 200W Internal (110V ~ 240V) Typical 126W
SymplyDIT XTH Thunderbolt Desktop (Half-Height) 2 7, 8, 9 2 x TB3
1 x SFF-8644		 1 x SFF-8644 30.0 x 21.1 x 13.6 cm 12 x 8.5 x 5.5 in 5.5 KG 12.7 lb 200W Internal (110V ~ 240V) Typical 161W
SymplyXTF Thunderbolt Desktop (Half-Height) 1 9 2 x TB3
1 x SFF-8644		 1 x SFF-8644 30.0 x 21.1 x 13.6 cm 12 x 8.5 x 5.5 in 5.5 KG 12.7 lb 200W Internal (110V ~ 240V) Typical 161W

Performance & Capacity

Drive Type Media Type Performance Native (Compressed) Capacity Native (Compressed)
LTO-9 Full Height LTO-9 400MB/Sec (1000MB/Sec) 18TB (45TB)
LTO-9 Full Height LTO-8 360MB/Sec (900MB/Sec) 12TB (30TB)
LTO-9 Half Height LTO-9 300MB/Sec (500MB/Sec) 18TB (45TB)
LTO-8 Half Height LTO-8 300MB/Sec (500MB/Sec) 12TB (30TB)
LTO-7 Half Height LTO-7 300MB/Sec (500MB/Sec) 6TB (15TB)

For more information on LTO Media click here.

Reliability

LTO Type Half Height Full Height
MTBF (Hours) 250,000 @ 100% duty cycle 250,000 @ 100% duty cycle
MSBF 100,000 cycles 100,000 cycles
Load / Unload Cycles 80,000 cycles 300,000 cycles

Environmental (LTO-9)

  Temperature Humidity Altitude
Operating 15 to 25 C (59 to 77 F) 20% to 80% (non-condensing) 3048m (10,000 ft)
Non-Operating -40 to 60 C (-40 to 140 F) excludes media 10% to 90% (non-condensing) 12192m (40,000 ft)

Operating System Support

Thunderbolt 3 Interface SAS Interface
Windows 11 and 10, Windows Server 2022, 2019, and 2016 Windows 11 and 10, Windows Server 2022, 2019, and 2016
macOS 11 “Big Sur and later macOS 11 “Big Sur and later
  Rocky Linux 8/9, CentOS 7, OpenSUSE LEAP 42/15, Red Hat Enterprise Linux 7/8/9, SUSE Linux Enterprise Server 12/15, and Ubuntu 20.04/22.04 LTS



Warranty

3 Years Warranty
