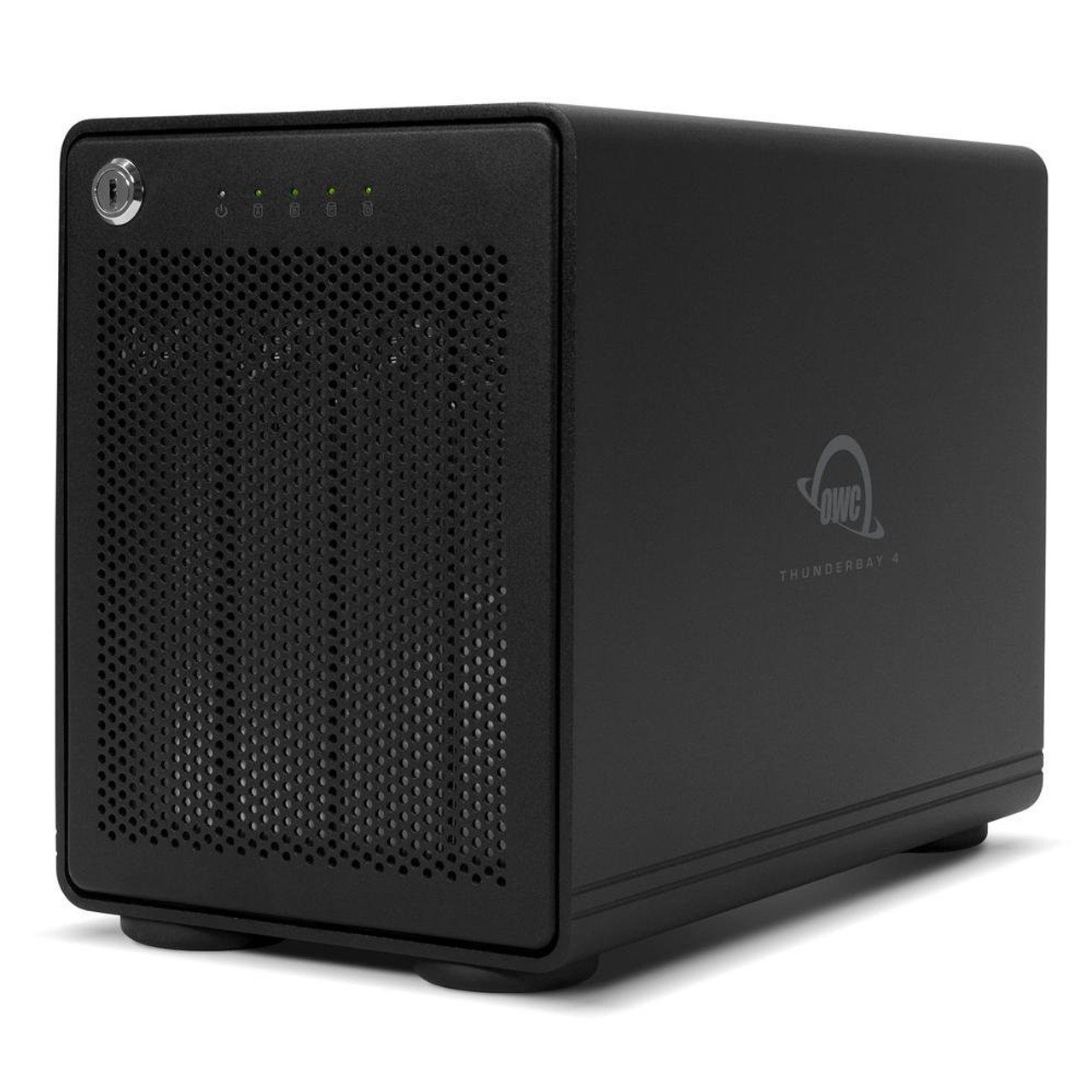

OWC Thunderbay 4 Desktop 4-Bay Thunderbolt 3 RAID Enclosure - 4TB to 80TB

Features:

Enterprise Hard Drives

5 years warranty

2 x Thunderbolt 3 ports

Ultra quiet, heat dissipating aluminum chassis

Includes SoftRaid for OWC. RAID 0/1/4/5/1+0

Read the full description

Your configuration £452.24 (£542.69 inc VAT)

SKU: OWCTB3SRKIT0GB

In Stock

Lead Time: 5-7 days




FREE Next Day UK delivery on orders over £300

Educational Discount - If you are a School, College or University please contact us here with your enquiry. You may be liable for an Extra Discount.

Quantity Discounts available - request for a quotation

Got a Question ? - Use our LIVE Chat window below and talk to one of our friendly staff who'll be happy to help. Or send us an email at sales@imagestore.co.uk.

Associated products

Latest products

Overview

OWC's flagship RAID powerhouse has been redesigned to take advantage of the phenomenal performance and power of the Thunderbolt 3 interface.

With capacity up to 80TB it's now faster, cooler and quieter than ever before.

Edit. Experiment. Create. Design.

Edit, view, stream, and produce more with ThunderBay in your 2K, 4K, and audio production workflow.

With ThunderBay's performance capabilities you can complete projects faster, have more time to experiment, and push your creations to the next level.

Enhance editing capabilities in video apps like Apple Final Cut Pro, Adobe Premiere, and Avid Media Composer. Empower greater audio production capabilities in audio apps like Avid Pro Tools and Logic Pro X. Edit large photos in apps like Adobe Photoshop, and browse large photo libraries in apps like Apple Aperture and Adobe Lightroom.

Simply put, you can do more with a ThunderBay 4 enhanced workflow, and with a RAID 5 array you get data redundancy on top of great performance!

Specification

Mechanisms Supported - Four (4) 2.5-inch or 3.5-inch SATA drives

Hot Swap Support - Yes

Chipset
SATA Controller: (2) ASM1062
Thunderbolt 3: (1) Intel DSL6540

Data Transfer Rate (Maximum) - Thunderbolt 3 : Up to 40 Gb/s (or 5000 MB/s)

Plug and Play - Yes

Reach Certification - Yes

RAID Capable - Yes

RAID Levels Supported
JBOD
RAID 0
RAID 1
RAID 4
RAID 5
RAID 10

RAID Features - Software RAID

Mac OS Compatibility
macOS 10.12 Sierra
macOS 10.13 High Sierra
macOS 10.14 Mojave
macOS 10.15 Catalina
macOS 11.x Big Sur
macOS 12.x Monterey
macOS 13.x Ventura

PC OS Compatibility
Windows 10 64-bit Edition
Windows 11

Other Requirements
SoftRAID XT works with macOS 10.12 or later and Windows 10 or later. SoftRAID is licensed per computer. The SoftRAID serial number will work with both Mac and Windows but can only be active on one computer at a time. Additional seats can be purchased. RAID 4/1+0 (10) are currently Mac only at this time.

Host Port Requirements - Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt1)

Power Supply- Internal UL-listed universal auto-switching power supply

AC Input - 100-230V

External Power Adapter - No

Number of Bays - 4

Device Ports
(1) Host Port - Thunderbolt 3 (USB-C) up to 40 Gb/s (5000 MB/s)
(1) Thunderbolt 3 (USB-C) Port
(1) DisplayPort Port

Cooling - 1 x 92mm Temperature-controlled cooling fan

Security Slot - Yes

Power Button - Yes

Power/Activity LED - Yes

Housing Color - Black

Housing Material - Aluminum

Dimensions
Height: 17.7 cm (7.0 in)
Length: 24.5 cm (9.6 in)
Width: 13.5 cm (5.3 in)

Weight - 3.9 kg (8.60 lbs)

Ambient Temperature
Operating: 50°F to 95°F (10°C to 35°C)
Non-Operating: -40°F to 149°F (-40°C to 65°C)

Humidity
Operating: 8% to 90% non-condensing
Non-Operating: 5% to 95% non-condensing

Warranty

5 years warranty
